HDTS TRAMPOLINE MEASUREMENT DEVICE
Perfect tool for competitions, training documentation and training control
The new HDTS Trampoline measurement device offers the following measurement functions:
ToF (Time of Flight)
HD (Horizontal Displacement)
SYN (Synchronicity)

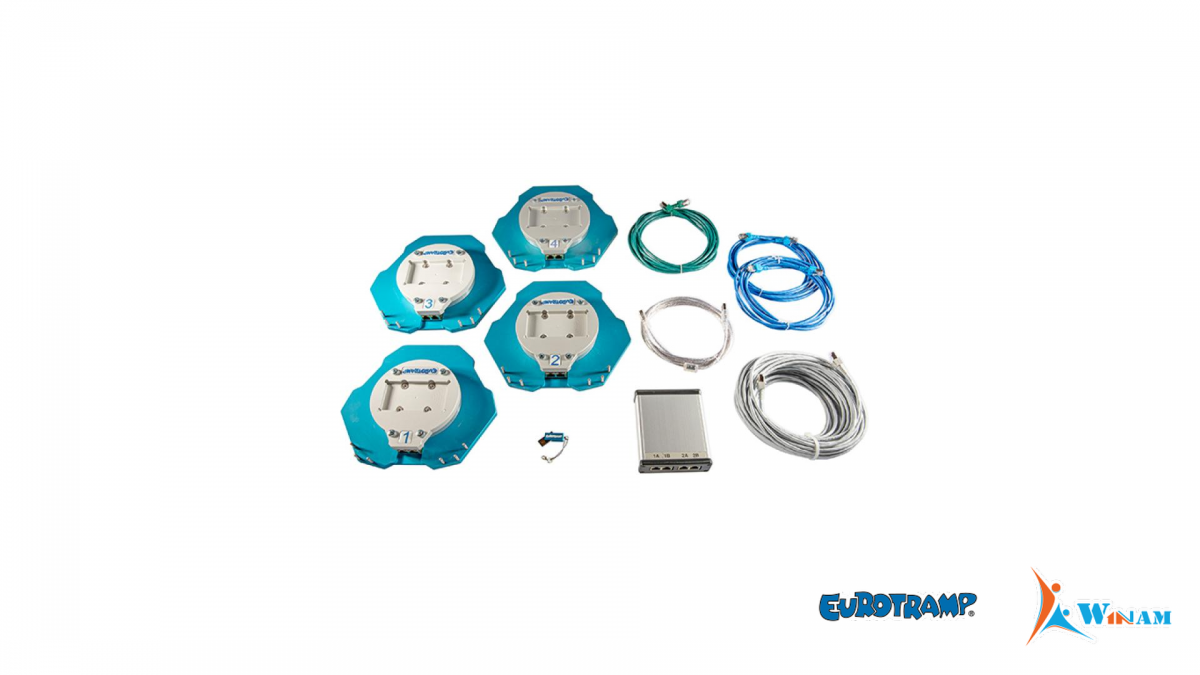

One set consists of (quantity):
USB Master Box (2)
Silver cable (USB-Micro to USB-cable for connecting the USB Box with the Computer) (2)

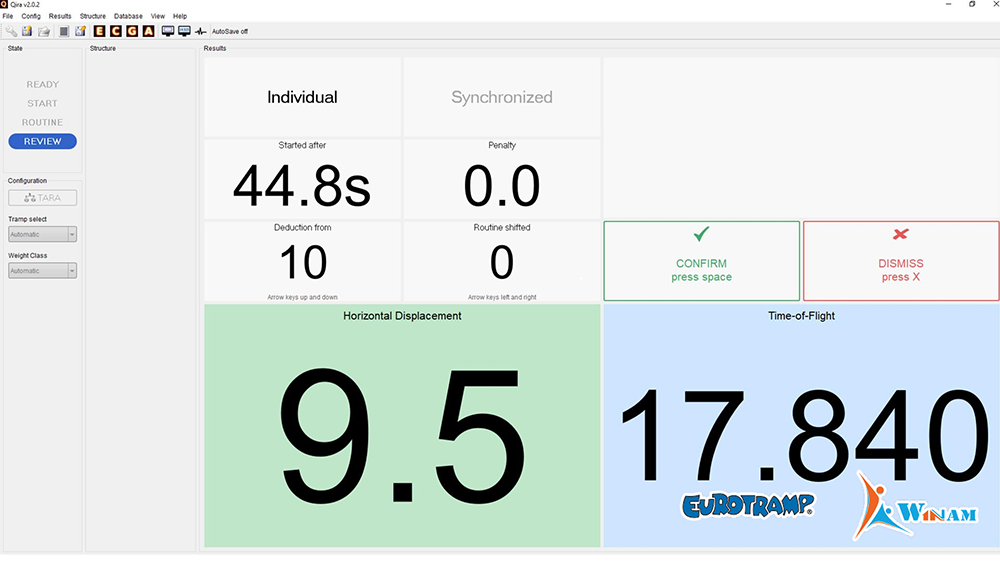

USB flash drive with PC software (1)

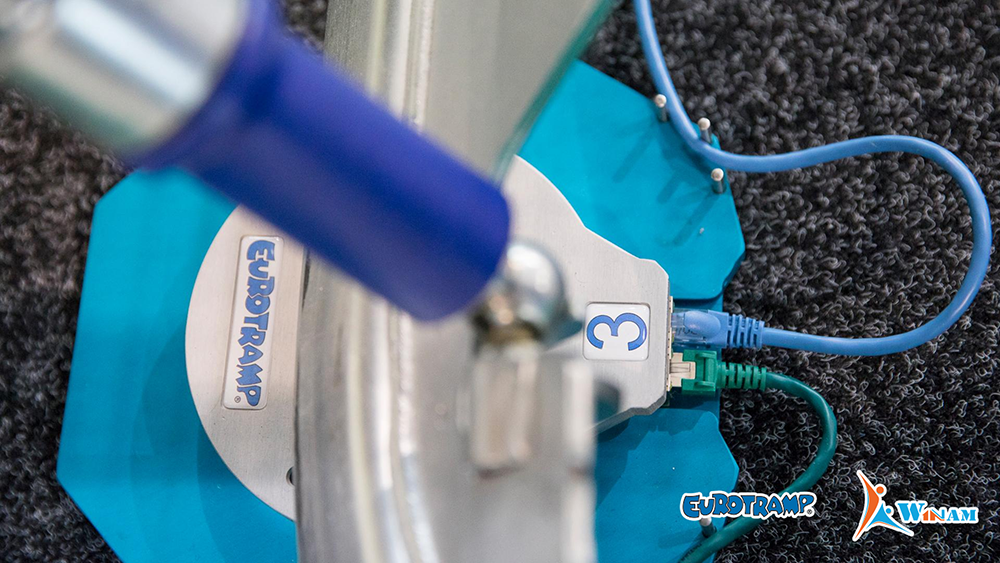

Measuring plates HDTS for two trampolines (4 measuring plates per trampoline) (8)
Green cables (Ethernet-cables for connecting the FP‘s 2-3) (2)
Blue cables (Ethernet-cables for connecting the FP‘s 1-2, 3-4) (4)
Grey cable (Ethernet-cables for connecting the USB Master Box with FP Number 1) (2)
Patented- The HDTS trampoline measurement system is protected by patent law. European Patent No.: 2962736.
Usecases:
- Details
- Accessories
- Spare parts
- Downloads
- Where to buy
Article-No: HDTS01
HDTS Trampoline measurement device
Inclusive: Software, measuring cables, cable box and 8 plates (for 2 trampolines). FIG-certified.
- Transport dimensions:
- Package
Length: 62 cm Width: 42 cm Height: 34 cm
- Frame Type
- --
- TÜV Certificate
- Yes
- Net Weight
- 20.34 kg
- HDTS accessories & corresponding spare parts
-
Article-No: HDTS050
HDTS connection box
Article-No: HDTS002
Adaption HDTS – premium – 8 pieces
Article-No: HDTS001
Adaption HDTS – premium – 4 pieces
Article-No: HDTS040
HDTS plate n° 4, without accessories
Article-No: HDTS030
HDTS plate n° 3, without accessories
Article-No: HDTS020
HDTS plate n° 2, without accessories
Article-No: HDTS010
HDTS plate n° 1, without accessories
Article-No: HDTS003

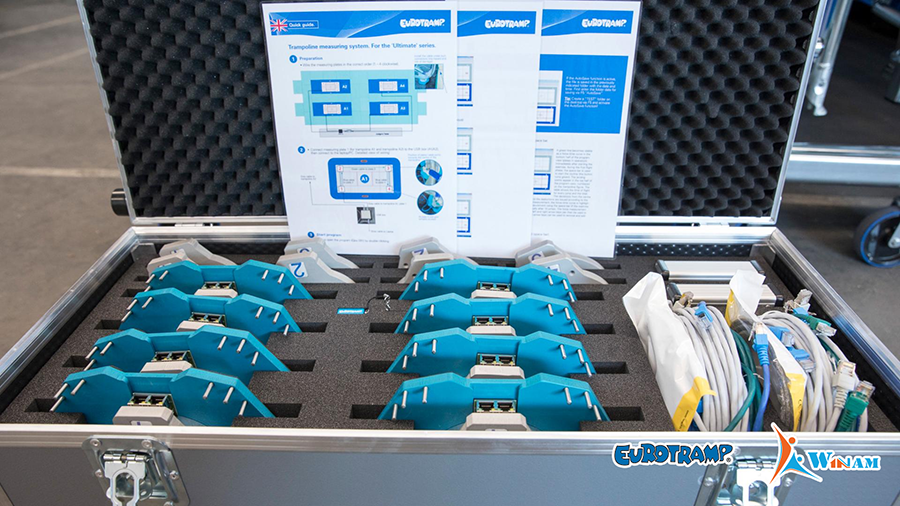

HDTS transport case
